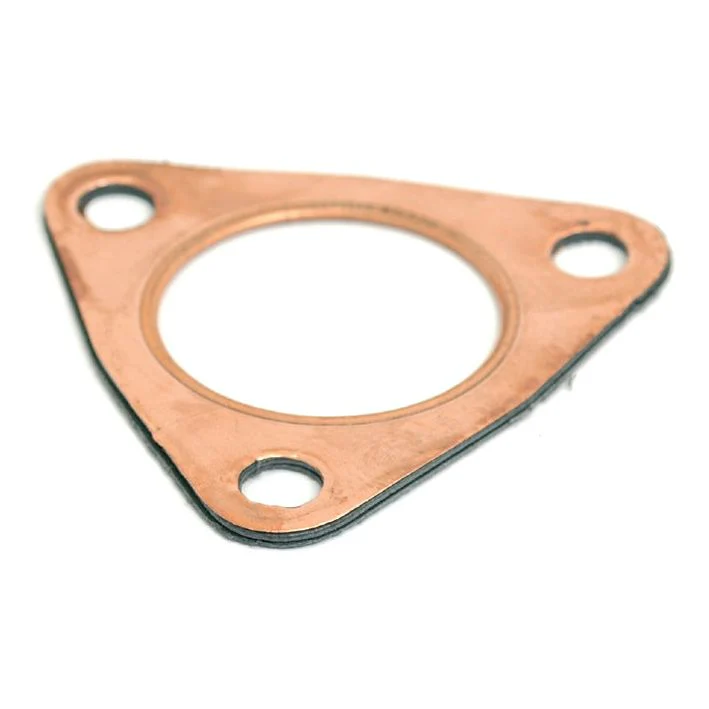

Exhaust Manifold Gasket | Sparex Part No. S.40646

Upgrade your engine's performance with the Exhaust Manifold Gasket, designed to connect the manifold to a 180° elbow. This high-quality gasket features an inner diameter of 50mm, with three bolt holes measuring 12mm each, and inter-hole spacing of 72mm (32D). Compatible with a range of models including BSD326, BSD329, BSD332, BSD333, BSD442, BSD444, BSD666, PowerStar 5.0T, PowerStar 7.5, and various A4 series engines.

Product Specifications

• Brand: Sparex
• Engine Manufacturer: Ford / Perkins
• Engine Model: ID 50mm, 3 x 12mm, Inter-holes: 72mm 32D, BSD326, BSD329, BSD332, BSD333, BSD442, BSD444, BSD666, PowerStar 5.0T, PowerStar 7.5, A4.212, A4.212 (LA), A4.236, A4.236 (LD), A4.248, A4.248 (LF), AD4.203, AT3.152.4
• Fits: Manifold to 180° Elbow
• Material: Steel/Sandevic
• Number of Bolt Holes: 3
• Perkins Build List: LA21912, LD00347, 21974, 22532, 22573, 22574, 22620, 22165
• Related Products: 15982, 43263, 61783
• Size (mm): 87 x 93
• Tariff Code: 8484100090
• Thickness (ins): 0.08
• Thickness (mm): 2

Suitable For Information

Compatible with various models from Ford / New Holland, including:

• 230A, 230A US BUILT, 231, 231 US BUILT, 2310, 233, 234, 250C, 2600, 2600 US BUILT, 260C, 2610, 2610 US BUILT, 2810, 2910, 3230, 333, 334, 335, 335 US BUILT, 340, 340A, 340B, 3430, 345C, 345D, 3600, 3600 US BUILT, 3610, 3610 US BUILT, 3900, 3910, 3930, 4110, 4110 US BUILT, 4130, 420, 420 US BUILT, 445, 445 US BUILT, 445A, 445C, 445D, 450, 455, 455C, 455D, 4600, 4600 US BUILT, 4610, 4610 US BUILT, 4630, 4640, 5110, 515, 515 US BUILT, 530A, 531, 531 US BUILT, 532, 532 US BUILT, 535, 535 US BUILT, 540, 540A, 540B, 545, 545 US BUILT, 545A, 545C, 545D, 550, 555, 555A, 555B, 5600, 5610, 6410, 655, 6600, 6710

Also suitable for Landini models:

• 6500, 6530, 6840, 7500, 7530, 7830, 8500, 8530, 8830, C7830, CF6830

And Massey Ferguson models:

• 164, 165, 168, 174, 174C, 175, 178, 184, 194, 194C, 263, 264, 264C, 265, 274, 274C, 283, 284, 293, 294, 294C, 30D, 364C, 394, 394CF, 50, 50B

Also compatible with Perkins models: A4.212 (LA), A4.236 (LD), A4.248 (LF).

Manufacturer Information

OEM fitment for:

• Landini: 36822135, 136822135, 3539375M1, 897938M1
• Massey Ferguson: 3280084M1, 72097677, 3638761M1, 36822135, 897938M1
• Perkins: 36822135
