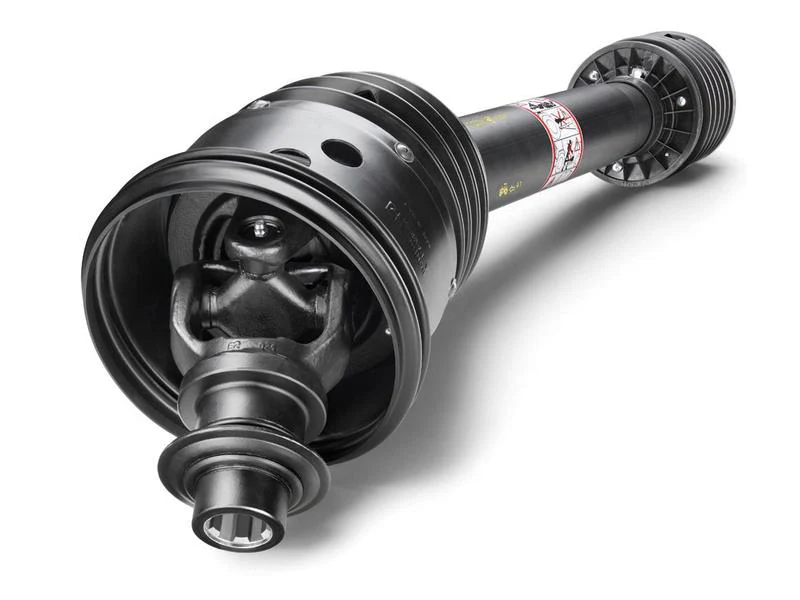

Bondioli & Pavesi PTO Shaft - Wide Angle

Introducing the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a wide angle design, making it an essential component for various agricultural applications.

Product Specifications

• Brand: Bondioli & Pavesi
• Guard Type: Global
• HP Rating @ 540RPM: 64 HP
• HP Rating @ 1000RPM: 100 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: Global G7-80°
• Kilowatt Power Rating @ 540RPM: 47 kW
• Kilowatt Power Rating @ 1000RPM: 74 kW
• Lz Length: 1210 mm
• PTO Series: Global G7-80°
• Reference: 7G7R121CEWR7007
• Tariff Code: 8483908990
• Torque: 335 - 1240 Nm
• Torque (Nm): 830 Nm
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Triangle
• Tube Ref: 24616/12517
• Universal Joint Dimensions: 27 x 100 mm

Compatibility

This PTO shaft is compatible with various implements and is designed to fit seamlessly with Bondioli & Pavesi equipment. It is not associated with any particular make or model, providing versatility for your agricultural needs.
