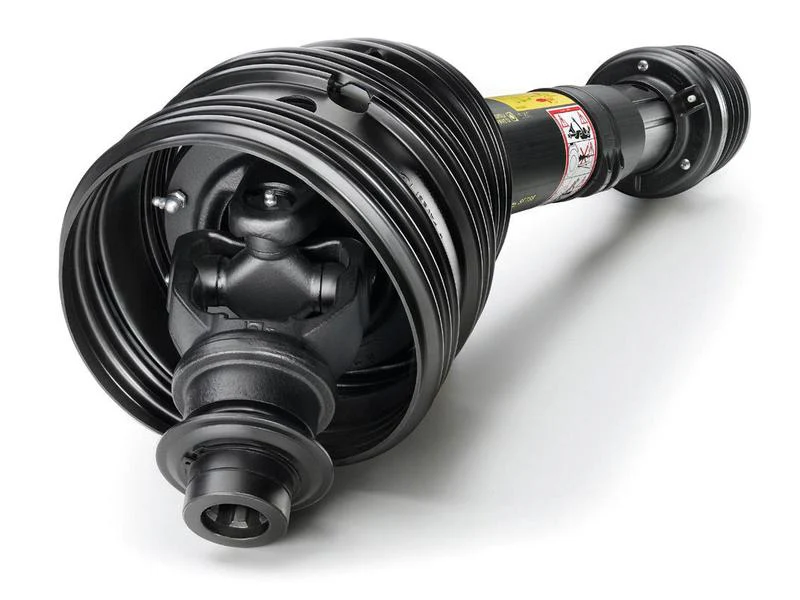

Bondioli & Pavesi PTO Shaft - Wide Angle - Length: 1210mm, 1 3/8'' | Sparex Part Number: S.165142

Introducing the Bondioli & Pavesi PTO Shaft, a high-performance solution designed for agricultural and industrial applications. This PTO shaft features a robust construction and is engineered to deliver exceptional power and torque, making it an essential component for your machinery.

Product Specifications

• Brand: Bondioli & Pavesi
• Guard Type: SFT
• HP Rating @ 540RPM: 55 HP
• HP Rating @ 1000RPM: 83 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: SFT S6-80°
• Kilowatt Power Rating @ 540RPM: 40 kW
• Kilowatt Power Rating @ 1000RPM: 61 kW
• Length (mm): 1210
• PTO Series: SFT S6-80°
• Reference: CS6R121CEWR7007
• Tariff Code: 8483908990
• Torque (Nm): 716
• Torque Range: 335 - 1240 Nm
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Square
• Tube Reference: 2453N/12246
• Universal Joint Dimensions: 27 x 100 mm

Compatibility

This PTO shaft is designed for universal fitment and is not associated with any specific make or model, making it a versatile choice for various applications.
