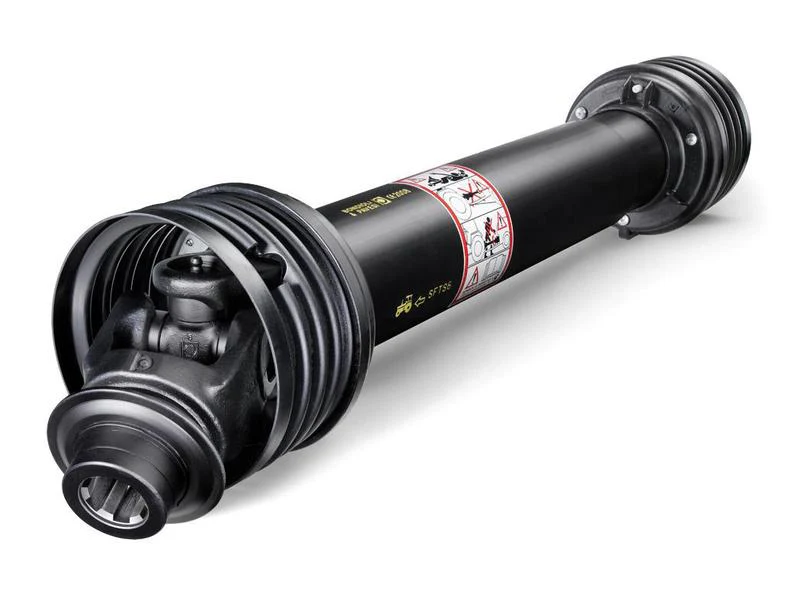

Bondioli & Pavesi PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R.

Introducing the Bondioli & Pavesi PTO Shaft, a high-performance solution designed for agricultural and industrial applications. This PTO shaft features a robust construction and is engineered to deliver exceptional power and torque, making it an essential component for your machinery.

Product Specifications

• Brand: Bondioli & Pavesi
• Guard Type: SFT
• HP Rating @ 540RPM: 90 HP
• HP Rating @ 1000RPM: 136 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: SFT S8
• Kilowatt Power Rating @ 540RPM: 66 kW
• Kilowatt Power Rating @ 1000RPM: 100 kW
• Lz Length: 1210 mm
• PTO Series: SFT S8
• Reference: CS8N121CE007007
• Tariff Code: 8483908990
• Torque: 1171 Nm (335 - 1240 Nm)
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Square
• Tube Reference: 12251/12209
• Universal Joint Dimensions: 34.9 x 93.5 mm

Related Products

Explore our range of compatible products: 24216, 165083, 165104, 165105, 165123, 165171, 165172.

For reliable performance and durability, choose the Bondioli & Pavesi PTO Shaft. This product is designed to meet the highest standards of quality and efficiency, ensuring optimal operation for your equipment.

Supplier: Sparex | SKU: SP-165147
