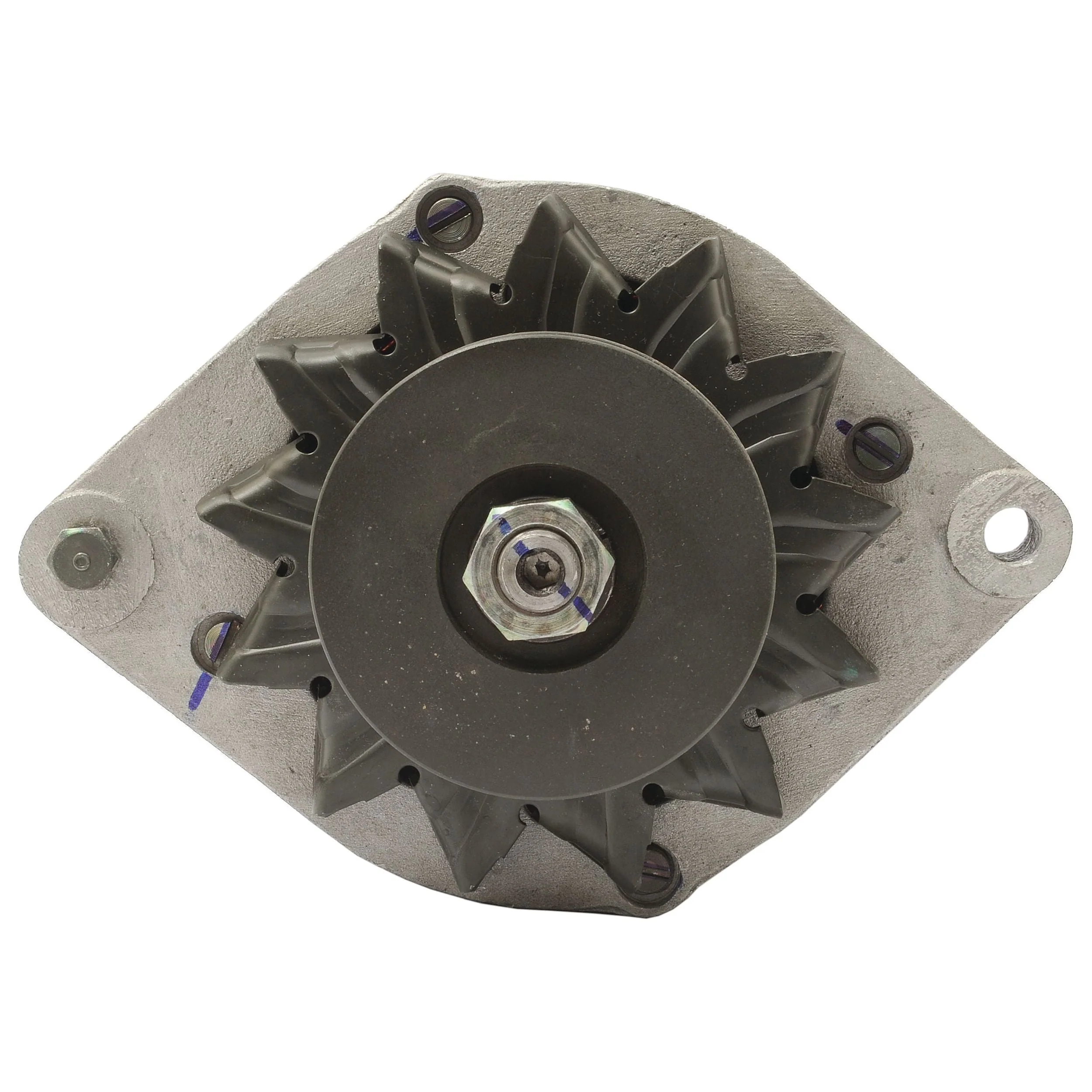

Alternator (Sparex) - 12V, 33 Amps | Sparex Part No. S.41162

Upgrade your machinery with the high-performance Alternator from Sparex. Designed for reliability and efficiency, this alternator features a Single Groove Pulley with a diameter of 80mm, ensuring optimal power delivery for your equipment.

Product Specifications

• Alternative to: 35955
• Amps: 33
• B (mm): 10.2
• Brand: Sparex
• Connection Type: Connector
• Fan Type: External
• Height (mm): 158.8
• Length (mm): 177.8
• Mounting Hole (mm): 10.2
• Number of Holes: Two
• Nut: Hex Nut
• Pulley Type: Single Groove
• Pulley Ø (mm): 80
• Shaft Type: Hex
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Volts: 12V
• Width (mm): 209.6

Suitable For

This alternator is compatible with a variety of models, including:

• Massey Ferguson: 1100, 1130, 133, 135, 135 US BUILT, 145, 148, 150, 152, 158, 165, 165 US BUILT, 168, 20, 20D, 20E, 20F, 230, 231, 240, 245, 250, 255, 260, 261, 2620, 2640, 265, 2680, 270, 275, 283, 285 (FR), 285 US BUILT, 290, 290 BRAZILIAN, 290 US BUILT, 298, 30, 30E, 30H, 375E BRAZILIAN, 390E BRAZILIAN, 40E, 50, 50A, 50B, 50D, 50E, 50EX
• Perkins: A4.212 (LA), A4.236 (LD), A4.248 (LF), AD3.152 (CE), AD4.203 (JE)
• Renault: ARES 556

Manufacturer Information

This alternator is manufactured by:

• Landini: 1897264M91, 1874616M1, 1895271M91, 1672844M1, 1699871M1
• Lucas: LRA361, 24087, 60600700
• Magnetimar: 9AR2547, 9AR2566
• Massey Ferguson: 1879264M91, 1897271M91, 1895271M91, 24087, 60600700, LRA361, 1676689M92, 1672844M1, 1897264M91, 1699871M1, 508545M92
• Renault: 7704001233, 6005003141, 6005003142, 7700591911, 6005700724, 6005011695, 7700034493, 7700009012, 7700683200, 7700017781, 7700034500, 7700034498, 7700012722, 6005700086, 6005700723, 6005003150, 7700008742
• Valeo: 432983, 433375
