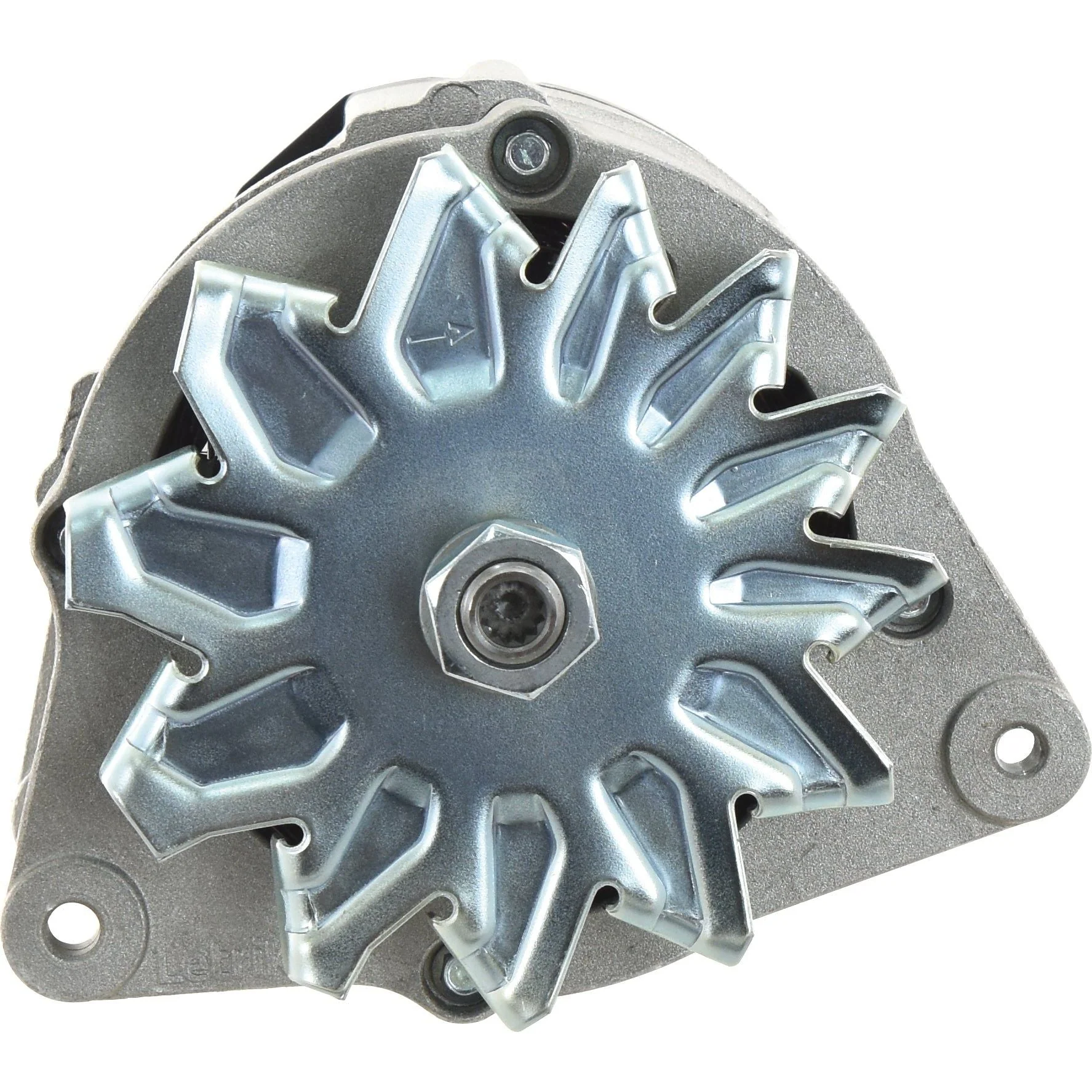

Alternator (Mahle) - 14V, 70 Amps | Sparex Part No. S.36169

Product Specifications

• A (mm): 80.5
• a Angle (°): 60
• Amps: 70
• B (mm): 8.2
• Brand: Mahle
• C (mm): 86
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection 4: B-
• Connection Type: Connector
• Fan Type: External
• Height (mm): 157.1
• Length (mm): 206.4
• Mounting Hole (mm): 8.2
• Number of Holes: Two
• Nut: Hex Nut
• Pulley Type: Without
• Related Products: 35911, 36003
• Replacement Regulator: S.36003
• Shaft Type: Hex
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Type: C2
• Volts: 14V
• Width (mm): 174.6

Suitable For

Case IH / International Harvester: C100, C50, C60, C70, C80, C90, CX100, CX50, CX60, CX70, CX80, CX90
Massey Ferguson: 154, 184, 273, 274, 274SK, 283 BRAZILIAN, 284, 294, 294C, 383, 50H, 698T

Manufacturer Information

Case IH / International Harvester: K311704, 229301A1, 188590A1
Claas: 6005706664
Ford / New Holland: 229301A1
Iskra: IA0811
Land Rover: AUU1053, RTC5846, ADU1148, AUU1184, YLE101560, YLE101700
Lester: 12074, 12072, 12239, 14054
Lucas: LRA00462, LRA00653, 24297, LRA00693, LRA00463
Massey Ferguson: 3641684M91, 4223493M91, LRA462, 6100316M91
Perkins: 2871A161, 2871A142
Valeo: VA135
