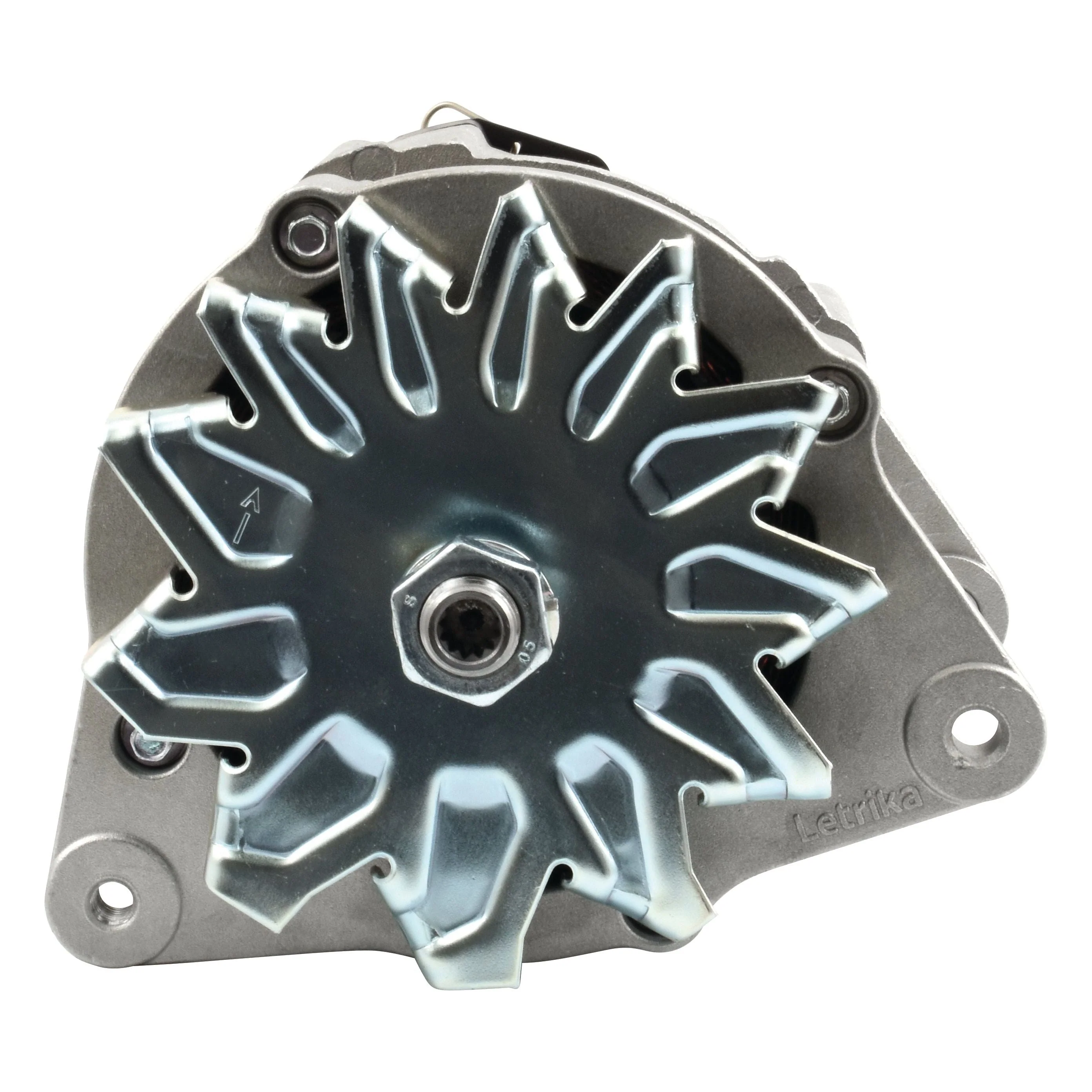

Alternator (Mahle) - 14V, 70 Amps | Sparex Part No. S.36168

Product Specifications

• A (mm): 80.5
• a Angle (°): -60
• Alternative to: 42282
• Amps: 70
• B (mm): 8.2
• Brand: Mahle
• C (mm): 86
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection 4: B-
• Connection Type: Connector
• Fan Type: External
• Height (mm): 152.4
• Length (mm): 209.6
• Mounting Hole (mm): 8.2
• Number of Holes: Two
• Nut: Hex Nut
• Pulley Type: Without
• Related Products: 35911, 36003
• Replacement Regulator: S.36003
• Shaft Length (mm): 35
• Shaft Type: Splined
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Type: B2
• Volts: 14V
• Width (mm): 177.8

Suitable For

Case IH / International Harvester: 1394, 1494, 1594, 238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 485, 485XL, 495, 495XL, 585, 585XL, 595, 595XL, 685, 685XL, 695, 695XL, 785XL, 795, 795XL, 885, 885XL, 895, 895XL, 995, 995XL

JCB: 3, 3CX 4, 4, 410, 412, 415, 4C AGRI, 4CX, 520, 520-2, 520-40, 520-50, 520-55, 525-4, 525-50, 525-58, 525-67, 5252, 526, 526-55, 527-58, 527-67, 528-70, 530, 530-110, 530-120, 530-67, 530-70, 530-95, 532-120, 535-125, 535-140, 535-60, 535-67, 535-95, 537-120, 537-130, 537-135, 540, 540-120, 540-140, 540-170, 540-70, FASTRAC 410, FASTRAC 412, FASTRAC 415

Landini: LARGE 16550

Massey Ferguson: 1014, 1114, 1134, 154, 154-4, 184, 184-4, 234C, 240, 245, 254C, 294C, 3085, 3095, 3115, 3125, 3140, 340, 350, 355, 360, 362, 3635, 3645, 365, 3655, 375, 383, 390, 390T, 393, 396, 398, 399, 460 XTRA BRAZILIAN, 6130, 6150, 6160, 6170, 6180, 6190, 6280, 6290

McCormick: V60, V70, V80

Valmet & Valtra: 800, 900

Manufacturer Information

AGCO: 83632800, C000900010190, 701910M91
Bosch: 120489384
Case IH / International Harvester: K311697, K311696, K311698, 84082C91, 92292C1, 92293C1, 92281C1, 84530361
Fiat: 66021636, 84530361, 92281C1
Iskra: IA0810
JCB: 714/10800, 714/40476, 714/01003, 714/40148, 71426100
Land Rover: ASU1693, ADU8880, ADU9548, ADU9750
Landini: 3582821M1, 3477851M91, 2871A141
Lester: 12306, 12086, 12365, 12699, 12046, 12045, 12307, 12088
Lucas: LRA00958, LRA461, LRB00290, LRA00602, LRA00461, LRA02690, LRA01669, LRA00460, LRA01888, LRA958, 24129
Magnetimar: 54022616
Massey Ferguson: 3930504R1, 3930504R91, 3930501R91, 2871A147, 4223493M91, 3611931M91, 2871A163, 3611576M91, 3582821M1, 3582821R1, 3478360M91, LRA460
Perkins: 2871A148, 2871A154, 1475922N91, 2871A141, 2871A160
Valeo: VA140, 433415, 2541290, 436692
Valmet & Valtra: 50273, 83632800
