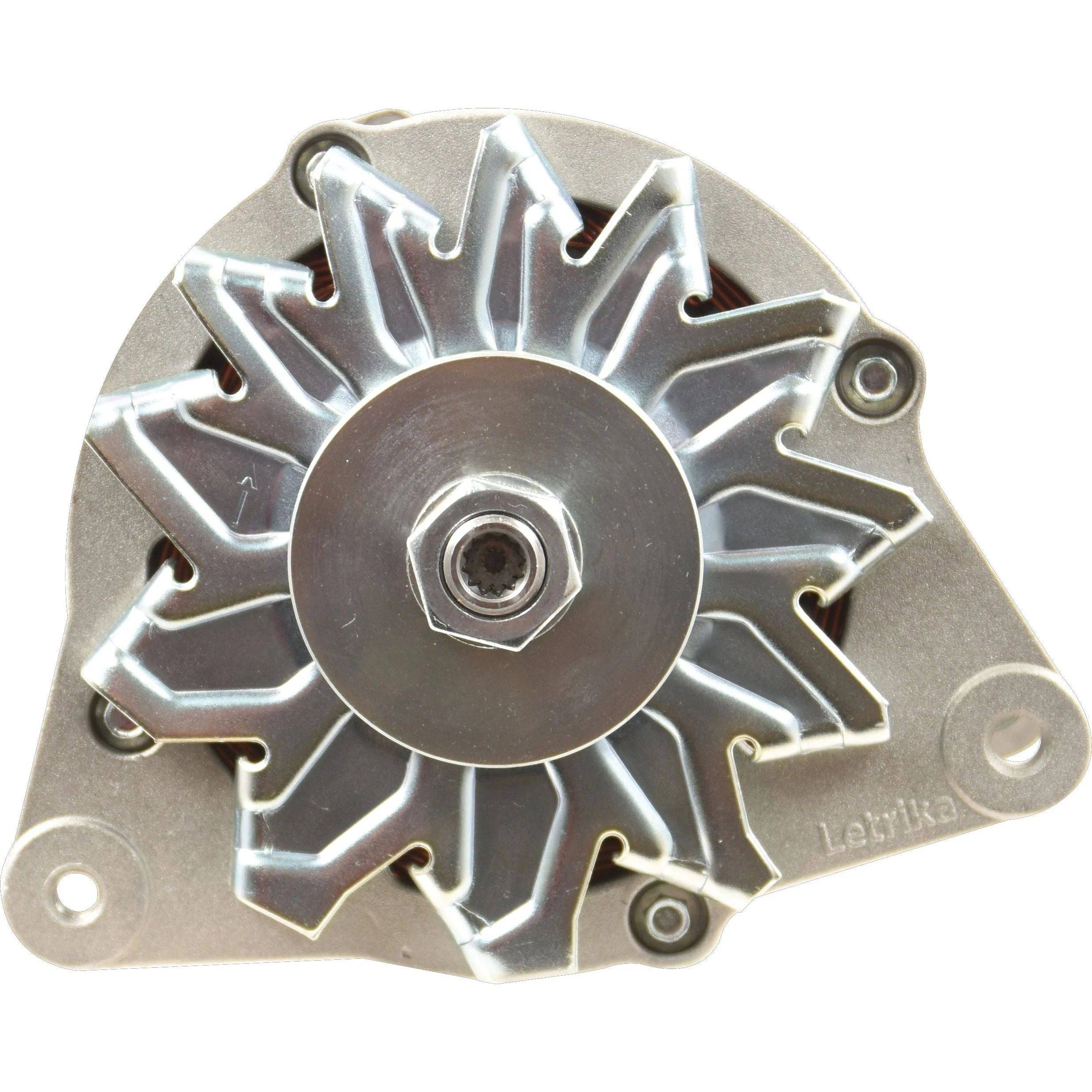

Alternator (Mahle) - 14V, 70 Amps | Sparex Part No. S.35965

Upgrade your vehicle's electrical system with the high-performance Mahle Alternator. Designed for reliability and efficiency, this alternator features a single groove pulley with a diameter of 60mm, ensuring optimal power delivery.

Product Specifications

• A (mm): 82
• a Angle (°): -60
• Amps: 70
• B (mm): 8.2
• Belt Pulley Width (mm): 9.7
• Brand: Mahle
• C (mm): 86
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection Type: Ring Terminal
• D (mm): 36.6
• Fan Type: External
• Height (mm): 158.8
• Length (mm): 209.5
• Mounting Hole (mm): 8.2
• Number of Holes: Two
• Nut: Hex Nut
• Pulley Type: Single Groove
• Pulley Ø (mm): 60
• Related Products: 35911, 36003
• Shaft Length (mm): 33
• Shaft Type: Splined
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Volts: 14V
• Width (mm): 177.8

Suitable For

This alternator is compatible with various models, including:

• Landini: 5530, 6560, 6860, 6870, 6880, 7560, 7860, 7870, 7880
• Massey Ferguson: 154, 3085, 3095, 3115, 3120, 3125, 3635, 3645, 365, 3655, 3670, 3680, 3690, 373, 374, 375, 377, 383, 384, 387, 390

Manufacturer Information

OEM fitment includes:

• Bosch: 0120489346, AL5052X, 120489346, 120489347, 986034470, 0986034470, 120488286, 0120489347
• Caterpillar: 1008223
• Ford / New Holland: 5024753, 1005351, 5023531, 5021177, 86AB10300MB, 86AB10300NA, 86AB10300NB, 86AB10346MA, 86AX10300MB, 6136957, R86AX10300MB
• Iskra: IA0581
• Lester: 13436, 12164, 14068, 21821, 20604, 20605, 20606
• Lucas: 24091, 24229, 24206, LRB00127, LRA604, LRA00381, LRA00604
• Magnetimar: 94335620
• Perkins: 2871C105
• Valeo: 432818, 436774, VA119
