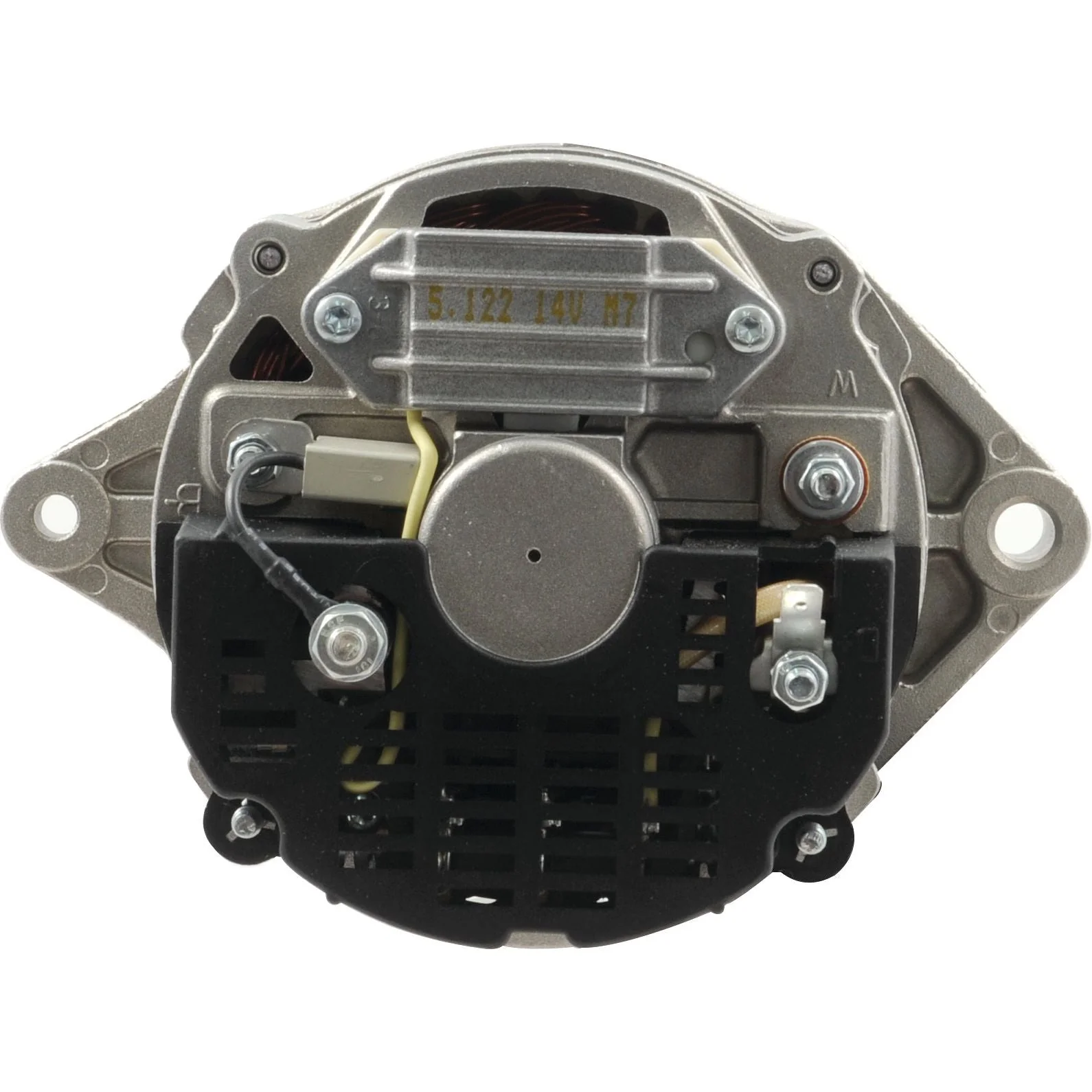

Product Title: Alternator (Mahle) - 14V, 65 Amps | Sparex Part No. S.36158

Product Overview: This high-performance alternator from Mahle features a double groove pulley with a diameter of 81mm, designed to deliver reliable power for your agricultural machinery.

Product Specifications

• A (mm): 27
• Amps: 65
• B (mm): 10.3
• Belt Pulley Width (mm): 2 x 9.7
• Brand: Mahle
• C (mm): 83
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection 4: B-
• Connection Type: Spade Terminal
• D (mm): 32.5
• Fan Type: External
• Mounting Hole (mm): 10.3
• Number of Holes: Two
• Nut: Hex Nut
• Shaft Type: Splined
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Volts: 14V

Compatibility Information

This alternator is suitable for the following models:

• Massey Ferguson: 3060, 6110, 6120, 6130, 6140, 6150
• Renault: 145-14, 145-54, 155-54, 160-94, 175-74, 180-94, 68-14, CERES 65, CERES 70

Manufacturer Information

OEM fitment includes:

• Iskra: IA0524
• Lucas: LRA1593, LRA01593
• Renault: 6005700725, 7700009011, 6005003144, 6005700087, 7700034499
• Valeo: 2940148, 436710, 433474, 433475, 2541746, 432978, 432981, A13N275
