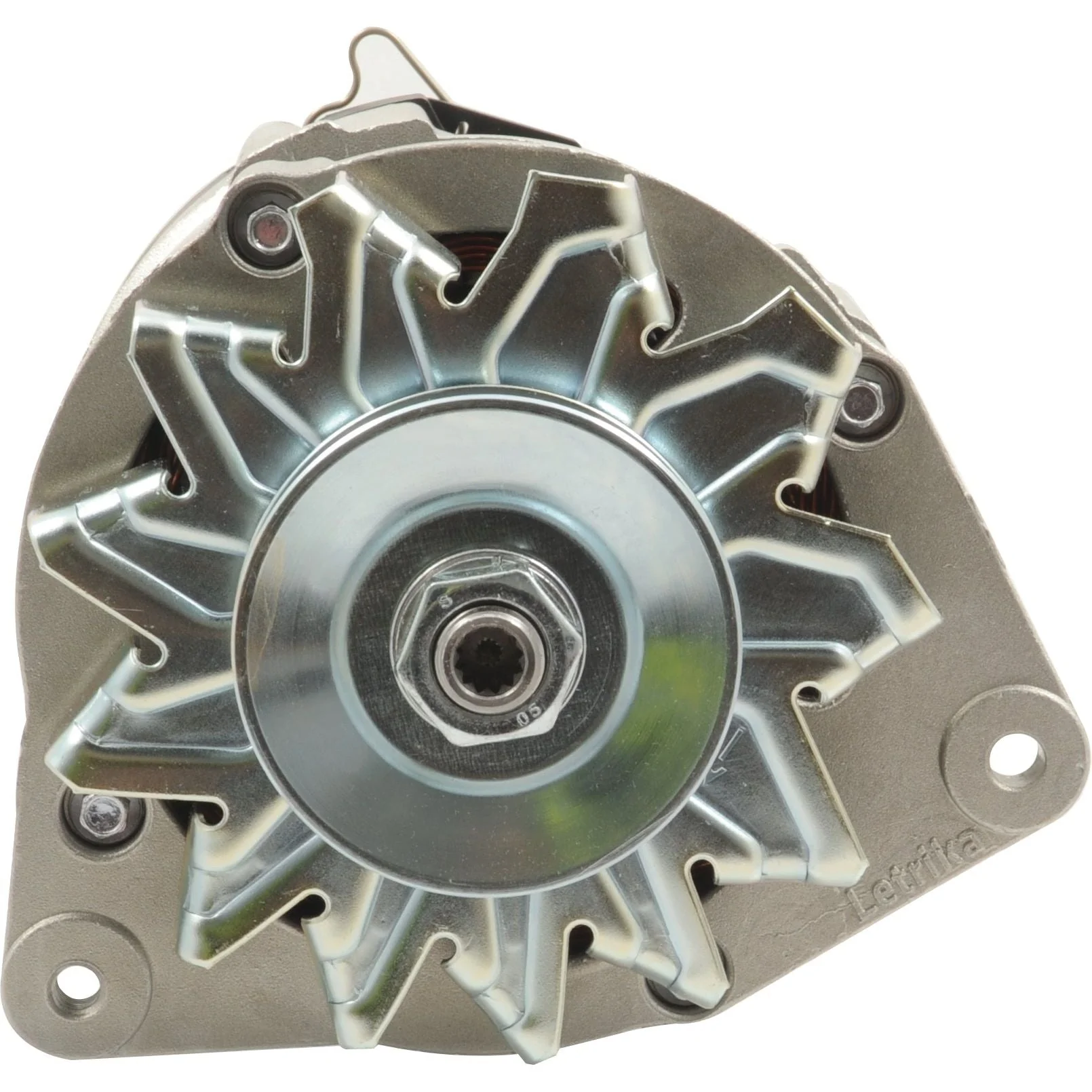

Alternator (Mahle) - 14V, 55 Amps | Sparex Part No. S.359660

Upgrade your machinery with the high-performance Mahle Alternator, designed to deliver reliable power with a voltage of 14V and an impressive 55 Amps. This alternator features a Single Groove Pulley with a diameter of 68mm, ensuring optimal performance for your equipment.

Product Specifications

• A (mm): 86
• a Angle (°): -60
• Alternative to: 359661
• Amps: 55
• B (mm): 8.2
• Belt Pulley Width (mm): 9.7
• Brand: Mahle
• C (mm): 83
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection 4: B+
• Connection Type: Connector
• D (mm): 36.6
• Fan Type: External
• Height (mm): 184.2
• Length (mm): 254
• Mounting Hole (mm): 8.2
• Number of Holes: Two
• Nut: Hex Nut
• Shaft Length (mm): 34
• Shaft Type: Splined
• Supplied with Fan: Yes
• Tariff Code: 8511400090
• Width (mm): 190.5

Suitable For

This alternator is compatible with a wide range of machinery, including:

• Case IH / International Harvester: 1194, 1490, 238, 248, 258, 268, 288, 3210, 3220, 3230, 374, 384, 385, 395, 4210, 4220, 4230, 4240, 444, 454, 474, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 684, 685, 685XL, 695, 784, 785, 785XL, 795, 884, 885, 895, 995, HYDRO 84
• David Brown: 1194, 1210, 1212, 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1694, 880, 990, 995, 996
• Ford / New Holland: 2000, 2600, 3000, 3600, 4000, 4100, 4600, 5000, 5600, 5700, 6000, 6600, 6700, 7000, 7600, 7700, 8600, 8700, 9700
• JCB: 3CX
• Landini: 4530, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6030, 6040, 6060, 6070, 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7000, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 8000, 8530, 8550, 8560, 8830, 8860, 8870, 8880, 9880, ADVANTAGE 55, ADVANTAGE 60, ADVANTAGE 65, ADVANTAGE 75, ADVANTAGE 85, BLIZZARD 50, BLIZZARD 60, BLIZZARD 65, BLIZZARD 75, BLIZZARD 85, C4500, C4830, C5000, C5500, C5830, C6500, C6830, C7800, C7830, C8860, CF4830, CF5030, CF5830, CF6030, CF6060, CF6830, GLOBUS 50, GLOBUS 55, LARGE 9550, REX 55, REX 60, REX 65, REX 75, REX 85, TREKKER 55, TREKKER 60, TREKKER 65, TREKKER 70, TREKKER 75, TREKKER 85
• Leyland: 282, 482, 802, 804
• Massey Ferguson: 1004, 20, 20F, 230, 24, 240, 253, 2620, 263, 2640, 265, 27, 2720, 283, 29, 298, 29XP, 3050, 30E, 30H, 31XP, 340, 350, 355, 360, 365, 375, 383, 390, 390T, 398, 399, 40E, 620, 625, 698, 699
• Renault: 80-34, CERES 75

Manufacturer Information

This alternator is manufactured by Bosch and is compatible with various OEM part numbers, including:

• 0120489562, 0120489595, 0120489843, 0120489706, 0120489803, 0120489666, 0120489074, 0120489617, 0120489090, 0120489084, 0120489086, 0120489087, 0120489088, 9120331872, 986030760, 986030370, AL119X, 986030768, 0120489508, 0120489522, 0120489842, 0120489839, 0120489840, 0120489841, 986030791, 986030798, 986030790, 986030761, 0120489896, 0120489705, 0120489804, 0120489940, 0120489844, 0120489667, 0120489594, 0120489561, 0120489091, 0120489103, 0120489345, 0120489048, 120489103, 120489666, 120489804, 120489667, 120489940, 120489896, 0986031050, 0986031350, 0986030370, 986031050, 986031350, 986031058, 986031358, 120489074, 120489048, 120489522, 9120331864, 9120331854, 120489087, 120489091, 120489595, 120489617, 0986030761, 0986030798, 0986030791, 0986030760, 120489086, 120489088, 120489803, 120489594

Ensure your machinery runs smoothly with the Mahle Alternator. Order now to experience enhanced performance and reliability!
