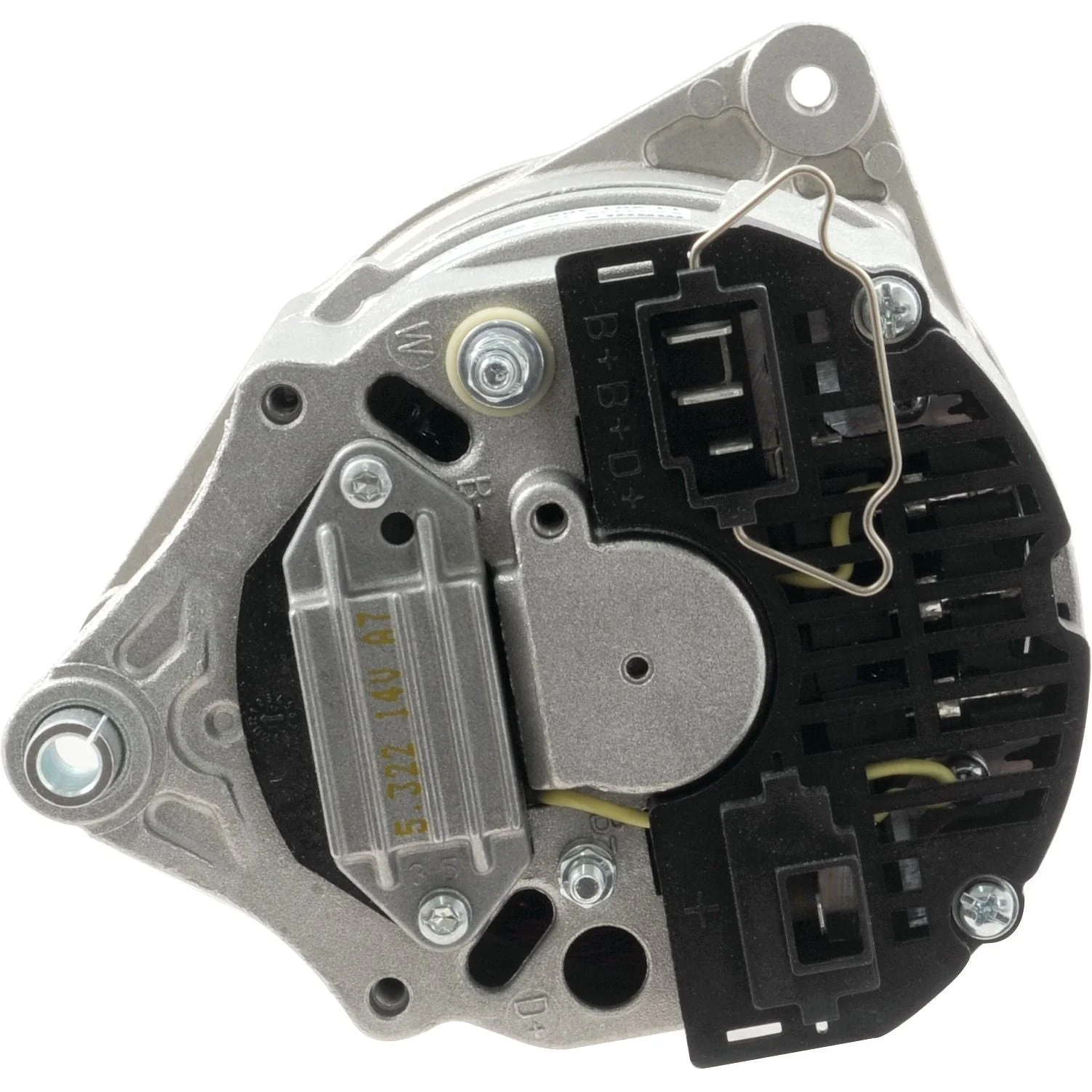

Alternator (Mahle) - 14V, 55 Amps | Sparex Part No. S.35925

Upgrade your vehicle's electrical system with the high-performance Mahle Alternator. Designed for reliability and efficiency, this alternator features a single groove pulley with a diameter of 68mm, ensuring optimal power delivery.

Product Specifications

• A (mm): 86
• a Angle (°): 60
• Alternative to: 50532
• Amps: 55
• B (mm): 8.2
• Belt Pulley Width (mm): 9.7
• Brand: Mahle
• C (mm): 83
• Connection 1: W
• Connection 2: D+
• Connection 3: B+
• Connection 4: B-
• Connection Type: Connector
• D (mm): 36.6
• Fan Type: External
• Height (mm): 152.4
• Length (mm): 209.6
• Mounting Hole (mm): 8.2
• Number of Holes: Two
• Nut: Hex Nut
• Shaft Length (mm): 33
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Volts: 14V
• Width (mm): 177.8

Suitable For

This alternator is compatible with various models, including:

• Landini: 6500, 6530, 6550, 6830, 6840, 7500, 7530, 7830, 8500, 8530, 8830
• Massey Ferguson: 174, 184, 194, 273, 274, 274SK, 283, 284, 293, 294
• Renault: 601-4, 701-4

Manufacturer Information

OEM fitment includes:

• Bosch: 0986030800, 120489593, 0986030780, 120489082, 120489567, 120489568, 120489592, 120489050, 120489937, 120489938, 986030780, 986030800, 0120489568, 0120489082, 0120489050, 0120489937, 0120489938, 986030788, 0120489592, 0120489593, 0120489567
• Claas: 6005701122
• Ford / New Holland: 5007074, 84FB10300MA, 82HF10300A2A, 81BB10300EA, 77FB10300KB, 76BB10300KD
• Iskra: IA0305
• Lester: 13138, 12073, 14046, 14030, 14048, 23626, 20462, 13116, 20249, 20250, 22777
• Lucas: LRA00202, LRA00113, LRA00362, LRA653, LRA462, 24023, 24098, 24089, 24119, 24118, 23864, 23701, LRA00105
• Renault: 7701032400, 7701028804, 6005701129, 6005007547, 6005701122
• Valeo: 432819, 433166, NA014, VA106, VA103, 436166
