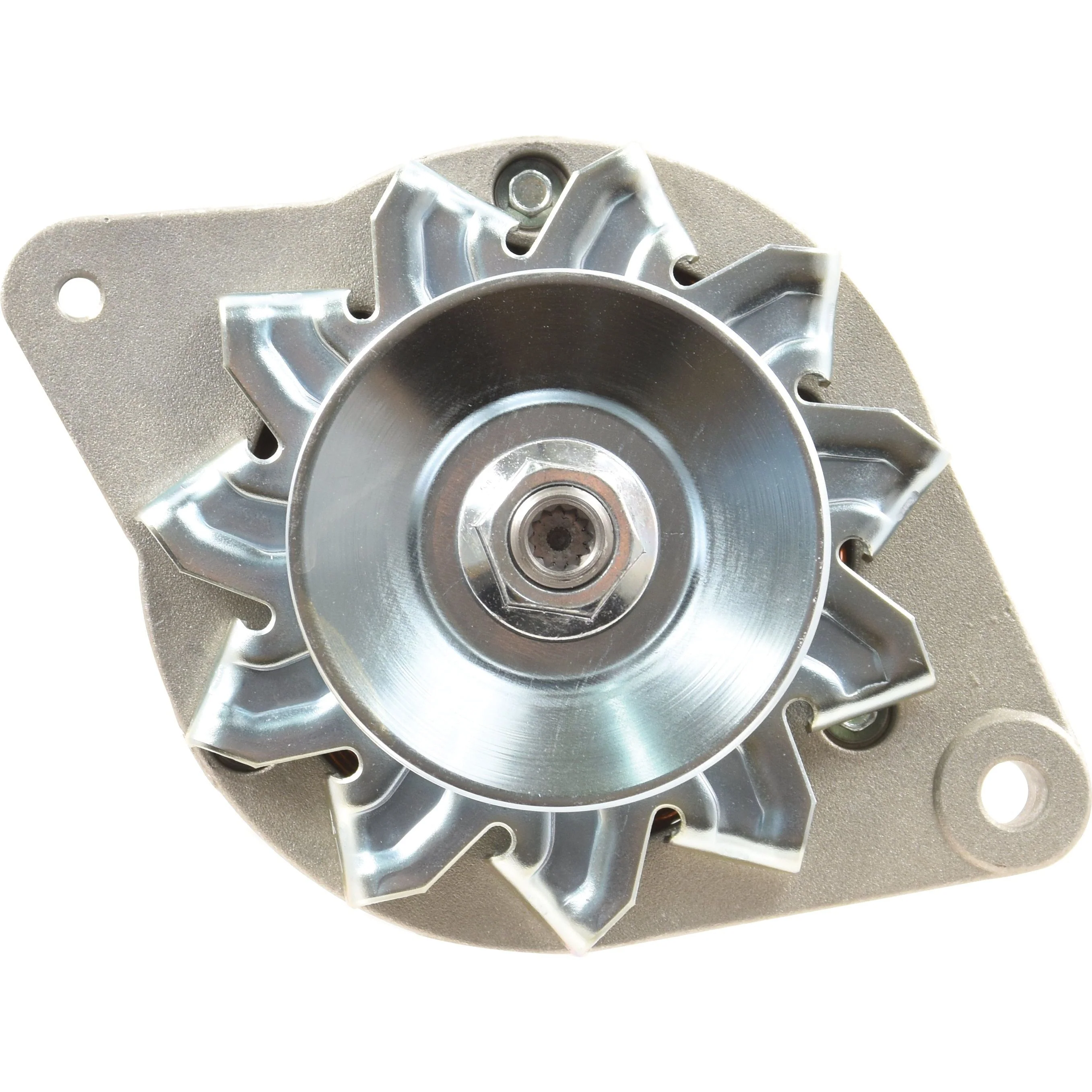

Alternator (Mahle) - 14V, 33 Amps | Sparex Part No. S.35955

Upgrade your machinery with the high-performance Mahle Alternator, designed for reliability and efficiency. This alternator features a single groove pulley with a diameter of 80mm, ensuring optimal power delivery for your equipment.

Product Specifications

• A (mm): 27
• Alternative to: 41162
• Amps: 33
• B (mm): 10.2
• Belt Pulley Width (mm): 12.7
• Brand: Mahle
• C (mm): 83
• Connection 2: D+
• Connection 3: B+
• Connection Type: Ring Terminal
• D (mm): 28.7
• Fan Type: External
• Height (mm): 158.8
• Length (mm): 177.8
• Mounting Hole (mm): 10.2
• Number of Holes: Two
• Nut: Hex Nut
• Pulley Type: Single Groove
• Pulley Ø (mm): 80
• Related Products: 35910, 35918
• Shaft Length (mm): 36
• Shaft Type: Splined
• Supplied with Fan: Yes
• Tariff Code: 8511500090
• Volts: 14V
• Width (mm): 209.6

Suitable For

This alternator is compatible with a wide range of machinery, including:

• Massey Ferguson: 1100, 1130, 133, 135, 135 US BUILT, 140, 142, 145, 148, 150, 152, 155, 158, 165, 165 US BUILT, 168, 174, 184, 194, 20, 20D, 20E, 20F, 230, 231, 235, 240, 245, 250, 250 BRAZILIAN, 254, 255, 260, 261, 2620, 2640, 265, 2680, 270, 274, 275, 283, 284, 285 (FR), 285 US BUILT, 290, 290 US BUILT, 298, 30, 30E, 30H, 3303, 375E BRAZILIAN, 390E BRAZILIAN, 40E, 50, 50A, 50B, 50D, 50E, 50EX
• Perkins: A4.212 (LA), A4.236 (LD), A4.248 (LF), AD3.152 (CE), AD4.203 (JE)
• Renault: ARES 556

Manufacturer Information

This alternator is manufactured by leading brands, ensuring quality and compatibility:

• AGCO: C000900010040
• Claas: 6005701120
• Iskra: IA0095
• Lester: 20181, 12173, 12038
• Lucas: LRA361, LRA00361
• Magnetimar: 9AR2547, 9AR2566
• Massey Ferguson: 1618478M91, 1895271M91, 3637264R91, 1897264M91, 1618473M91, 1618474M91, 1618477M91, 1874681M91, 1874758M92, 1875955M1, 1699871T, 1875955M91
• Perkins: 24123R
• Valeo: 432983, 433375, NA118
